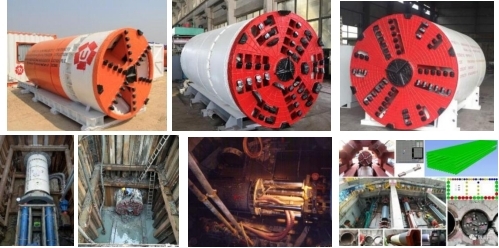

中小型泥水平衡顶管掘进机 （Ф700 - Ф2200）
Small and Medium Sized Slurry Pipe Jacking Machine
中小型泥水平衡顶管机应用于市政中小型管道（污水管、供水管、供电电缆管、通信电缆管、天然气管等）的建设，管材通常为砼管、钢管、玻璃钢夹砂管，可以适应在土、砂土、含有小粒径的卵石和砾石等地质条件下施工，适用直线或曲线顶进距离100m-1000m。采用泥水平衡方式完成土体切割、推进、连续排渣等作业，完成中小型管道安全、高效、高质量非开挖铺设，可以较好地控制地面沉降。
Small and medium-sized slurry balance pipe jacking machine is used in the construction of municipal small and medium-sized pipelines (sewage, water supply, power cable pipe, communication cable pipe, natural gas pipe, etc.). The pipes are usually concrete pipe, steel pipe, glass fiber reinforced plastic sand pipe, which can be adapted to the construction under different geological conditions such as soil, sand soil, pebbles and gravel with small particle size, and are suitable for straight or curve jacking distance of 100m-1000m. The slurry balance method is used to soil cutting, propulsion, continuous slag discharge and other operations, and the safe, efficient and high-quality trenchless laying of small and medium-sized pipelines can be completed, which can better control the ground settlement.
|
Pipe ID (mm) |
Machine DimensionOD*L(mm) |
Cutterhead Power (kW*set) |
Torque (kN·m) |
Revolution (r/min) |
Steering Jack (kN*st*set) |
Hydraulic Unit (kW) |
Slurry Line Diam.(mm) |
Shaft Dimension (mm) |
Power Source (Hz/V) |
|
Φ700 |
925 x 3500 |
18.5 x 1 |
28 |
0—7 |
294 x 30 x 4 |
1.1 |
100 |
4000x3000 |
50/400 |
|
Φ750 |
975 x 3500 |
18.5 x 1 |
28 |
0—7 |
294 x 30 x 4 |
1.1 |
100 |
4000x3000 |
50/400 |
|
Φ800 |
1020 x 3500 |
30 x 1 |
46 |
0—7 |
294 x 30 x 4 |
1.1 |
100 |
4000x3000 |
50/400 |
|
Φ900 |
1100 x 3500 |
30 x 1 |
46 |
0—7 |
294 x 35 x 4 |
1.1 |
100 |
4000x3000 |
50/400 |
|
Φ1000 |
1220 x 3800 |
37 x 1 |
70 |
0—6 |
490 x 35 x 4 |
1.5 |
100 |
6000x4000 |
50/400 |
|
Φ1100 |
1330 x 3800 |
37 x 1 |
70 |
0—6 |
490 x 40 x 4 |
1.5 |
100 |
6000x4000 |
50/400 |
|
Φ1200 |
1470 x 3800 |
45 x 1 |
107 |
0—5 |
784 x 45 x 4 |
2.2 |
100 |
6000x4000 |
50/400 |
|
Φ1350 |
1640 x 3800 |
55 x 1 |
130 |
0—5 |
784 x 45 x 4 |
2.2 |
100 |
6000x4000 |
50/400 |
|
Φ1500 |
1810 x 3900 |
45 x 2 |
215 |
0—4 |
784 x 50 x 4 |
3 |
150 |
6000x4000 |
50/400 |
|
Φ1650 |
1950 x 3900 |
45 x 3 |
344 |
0—3 |
980 x 60 x 4 |
3 |
150 |
6500x4000 |
50/400 |
|
Φ1800 |
2190 x 4000 |
45 x 3 |
344 |
0—3 |
784 x 80 x 8 |
5.5 |
150 |
6500x4000 |
50/400 |
|
Φ2000 |
2440 x 4000 |
55 x 3 |
525 |
0—3 |
784 x 80 x 8 |
5.5 |
150 |
7000x4000 |
50/400 |
|
Φ2100 |
2540 x 4000 |
55 x 3 |
525 |
0—3 |
784 x 80 x 8 |
5.5 |
150 |
7000x4000 |
50/400 |
|
Φ2200 |
2610 x 4000 |
55 x 3 |
525 |
0—3 |
784 x 80 x 8 |
5.5 |
150 |
7000x4000 |
50/400 |
注：以上参数可根据用户需求适当调整。Note: Above parameters can be adjusted based on clients needs. （如果排版放得下，请放成两排。）
